Sinker EDM for Tyre Mould Making

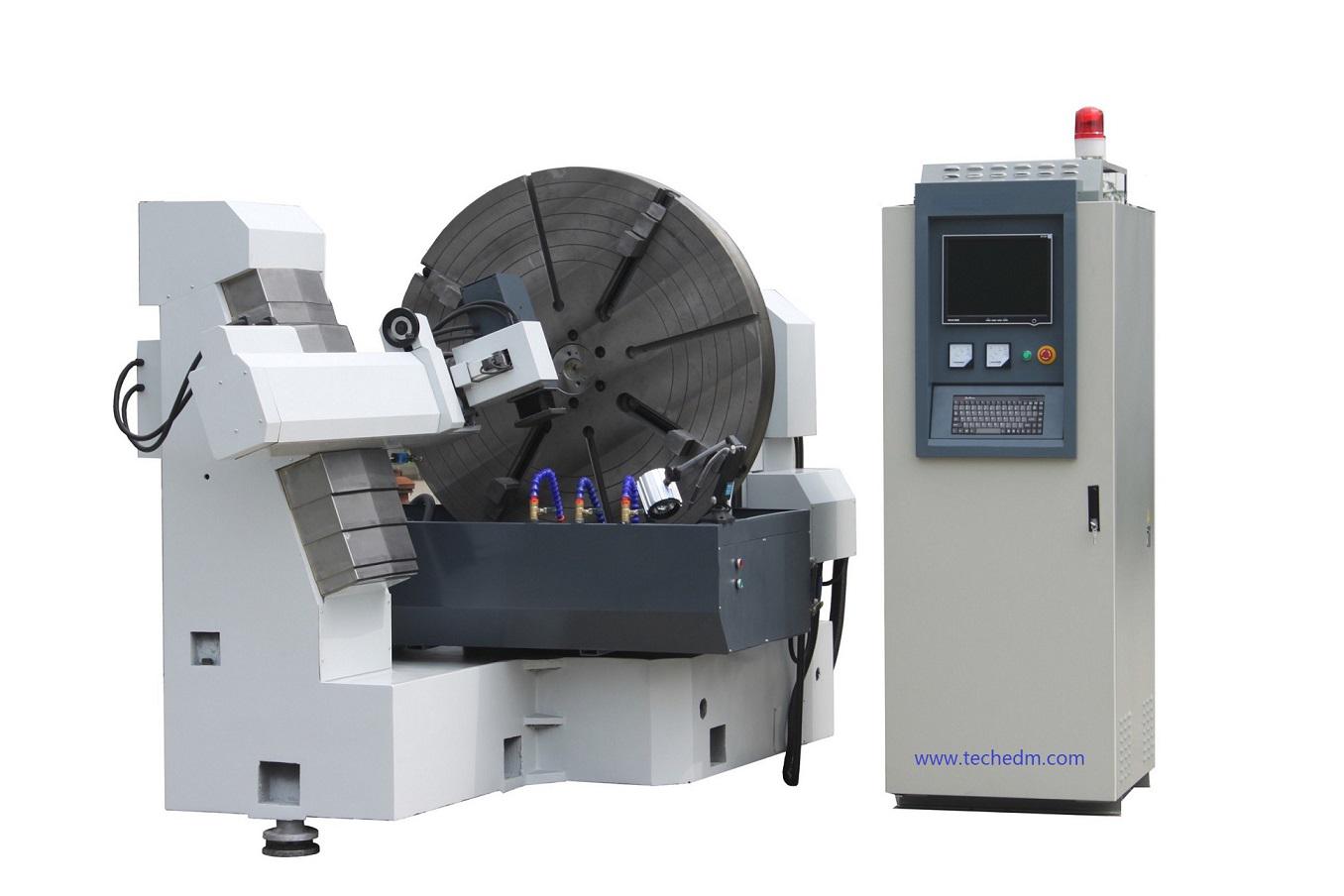

TM-130 is a 5-axis CNC precision Sinker EDM machine for tyre mould ring pattern making.

I.        Benefits of the Sinker EDM machine for tyre mould ring pattern making:

Higher machining efficiency and lower usage cost.

II.       Function of the Sinker EDM machine for tyre mould ring pattern making:

This machine is a special equipment developed for the processing of tyre mould ring pattern by adopting the method of EDM.

III.      Advantages of the Sinker EDM machine for tyre mould ring pattern making:

1. The machine is controlled by IPC, five-axis CNC.

2. Z-axis position control, automatic conversion of processing speed.

3. Automatic indexing and indexing of the rotary table.

4. Automatic completion of machining process except for electrode change.

5. It can display the machining parameters, coordinate position and other information on the screen of the controller.

6. It can process half steel and full steel radial tyre molds.

7. There is a digital pulse power supply, and it can use copper or graphite electrode for machining.

IV.            Quality Evidences of the Sinker EDM machine for tyre mold ring pattern making:

The Sinker EDM machine is our patented product and has been widely used in tyre mold making enterprises in China and overseas market.

V.              Main Technical Parameters

Name/Specification:                         TM-130

Rotary table size:                             Ø1300mm

Spindle servo travel:                        120mm

Max. electrode weight:                     10kg

X-axis travel:                                   650mm

Y-axis travel:                                   50mm

W-axis travel:                                  300mm

Indexing accuracy of rotary table:      40"

Spindle swing angle:                        ±45º

Table load capacity:                         2500Kg

Input power:                                   15KVA

Max. machining current:                   200A
